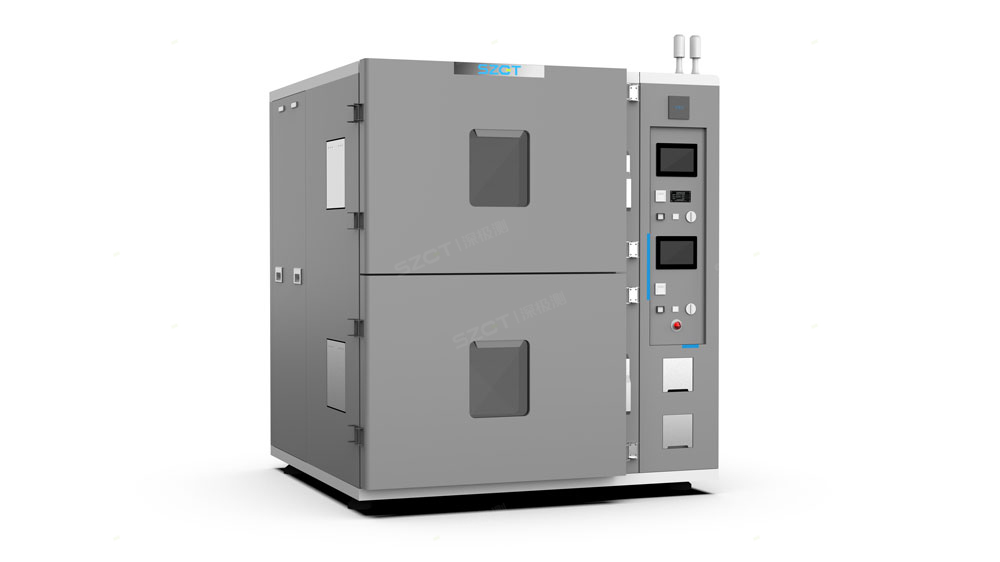

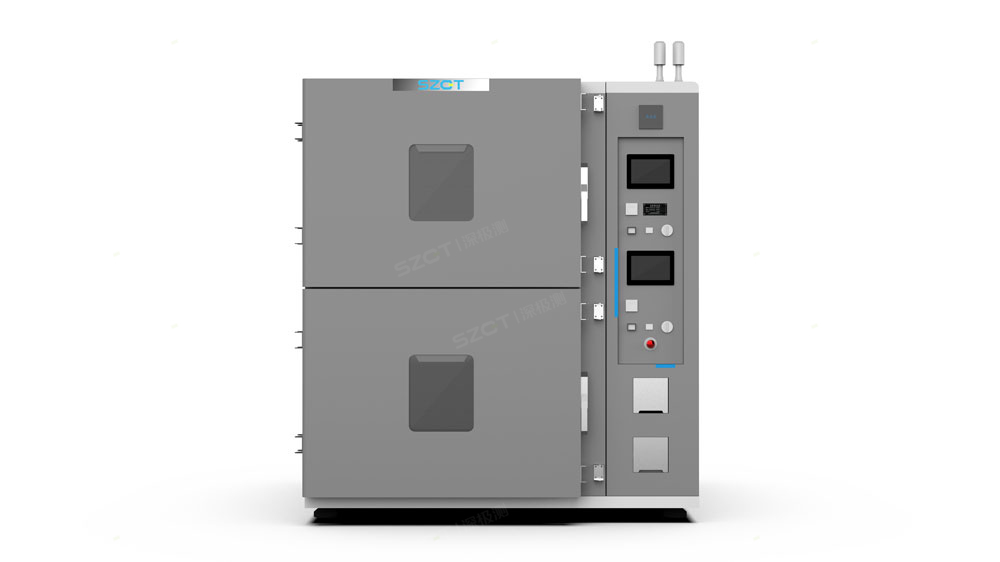

Smart Charge-Discharge Temperature Chamber Integrated System

Product Introduction

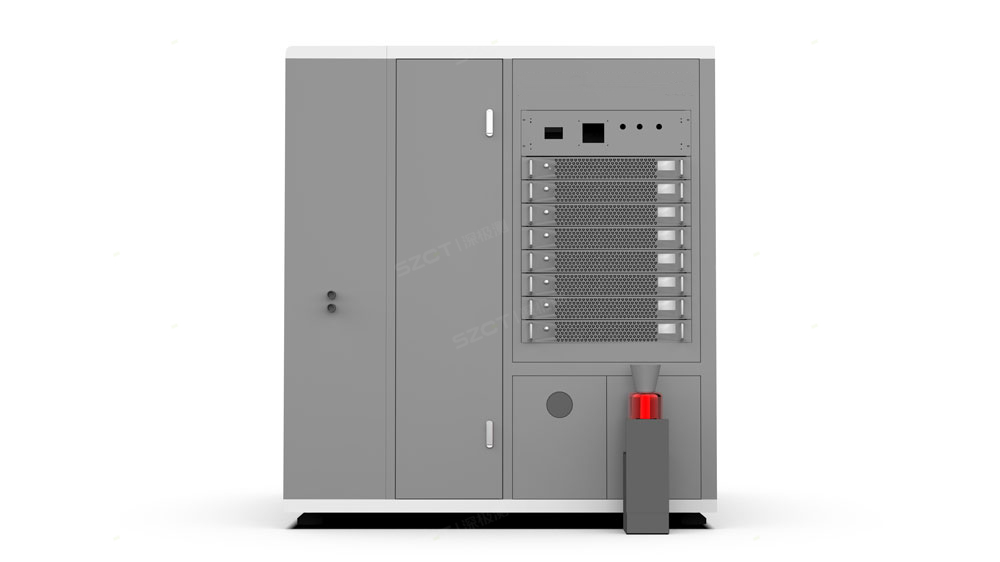

The high and low temperature box products can simulate temperature changes in the weather environment, and together with the power module, form a high and low temperature box integrated machine.

Mainly used for high and low temperature testing or constant temperature testing of power battery cells, product reliability testing is conducted by simulating temperature changes.

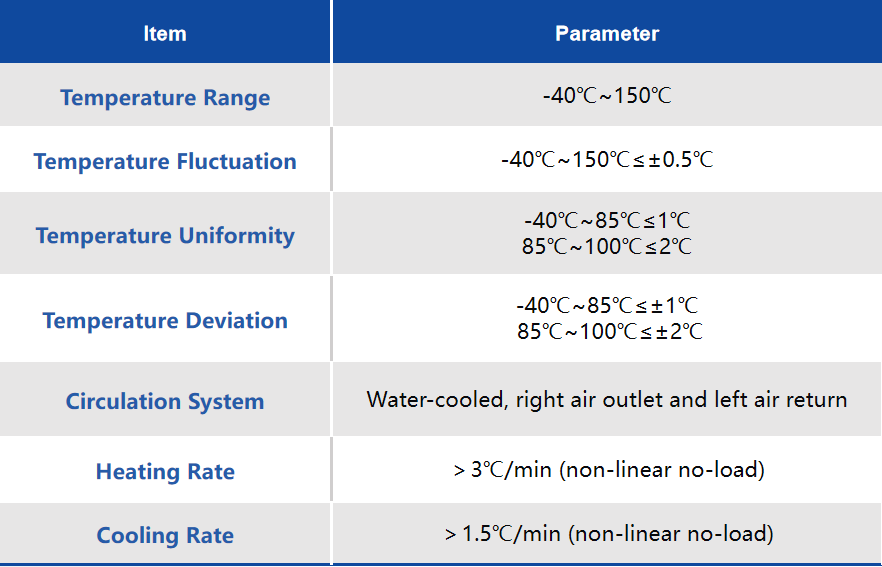

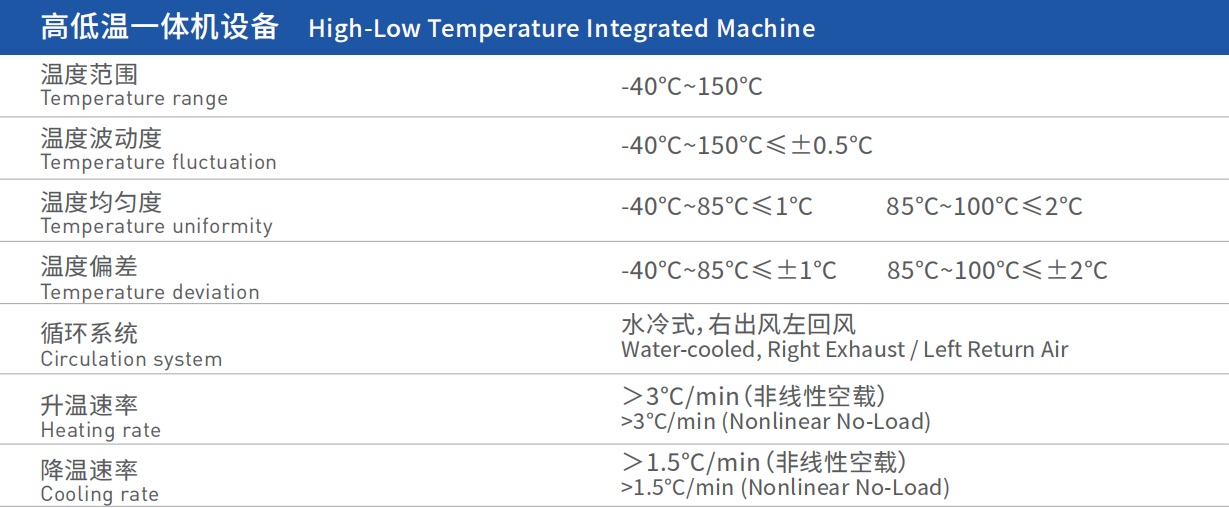

performance index

Temperature range:- 40°C~150°C

Temperature fluctuation:- 40 ° C~150 ° C ≤ Soil 0.5 ° C

Temperature uniformity:- 40°C~85°C≤1°C

                                        85°C~100°C≤2°C

Temperature deviation:- 40 ° C~85 ° C ≤ ± 1 ° C

                                      85 ° C~100 ° C ≤ ± 2 ° C

Circulating system: water-cooled, right outlet and left return air

Control mode: program control, constant value operation

Heating rate:> 3 ° C/min (non-linear no-load)

Cooling rate:> 1.5 ° C/min (non-linear no-load)

Protection functions: temperature over temperature alarm function, compressor pressure protection, circulation motor overheat/overcurrent protection, compressor overcurrent/overheat protection, explosion-proof chain protection

●Specific functional parameters can be customized
