Battery Cell Testing System

Product Introduction

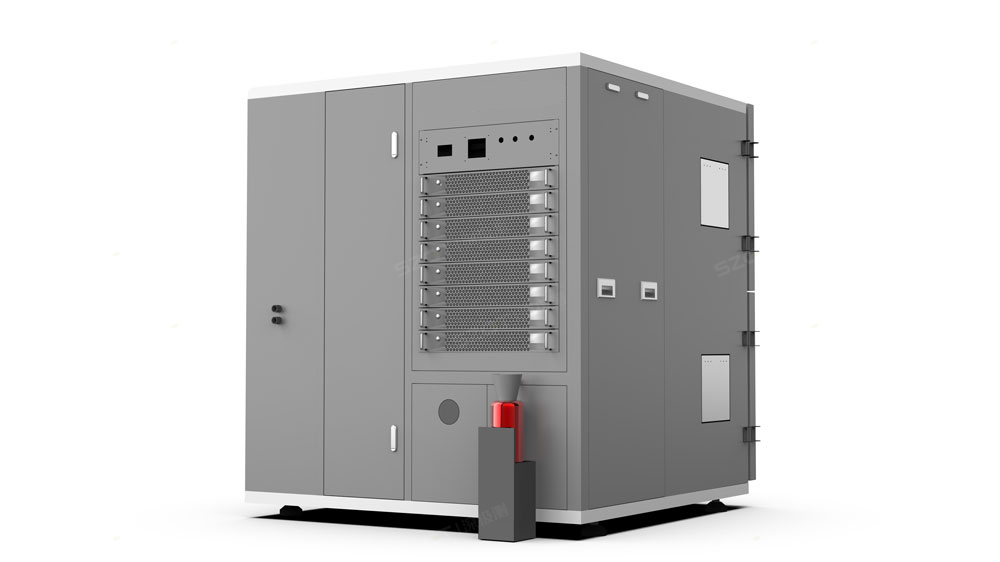

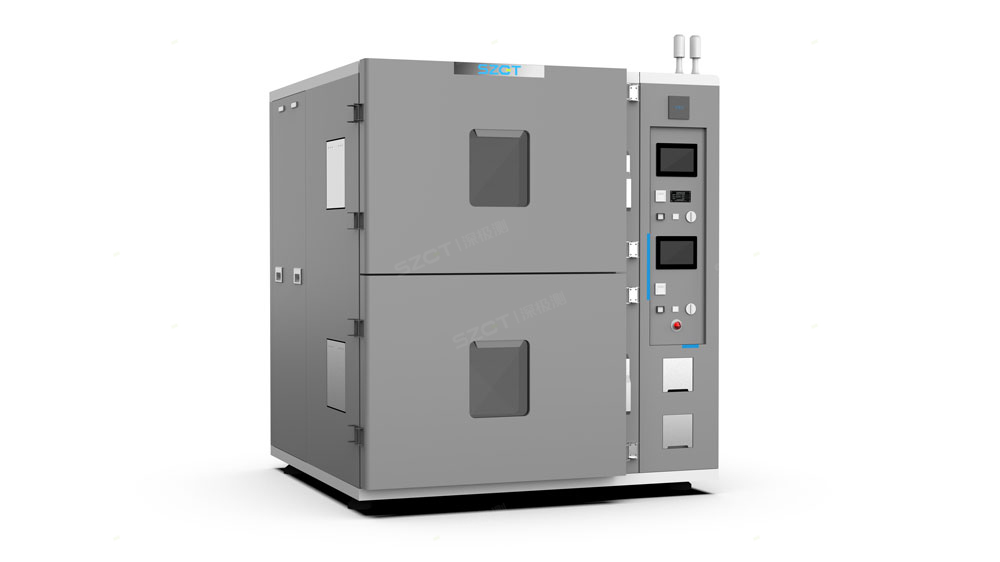

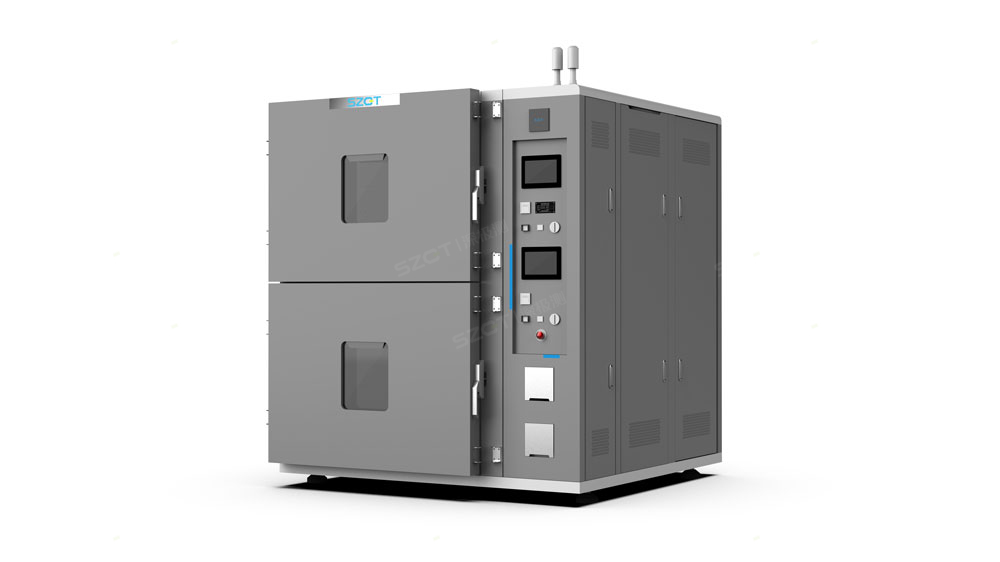

The oven product can simulate temperature changes in the weather environment and form an integrated oven machine with a power module.

Mainly used for high and low temperature testing or constant temperature testing of power battery cells, product reliability testing is conducted by simulating temperature changes.

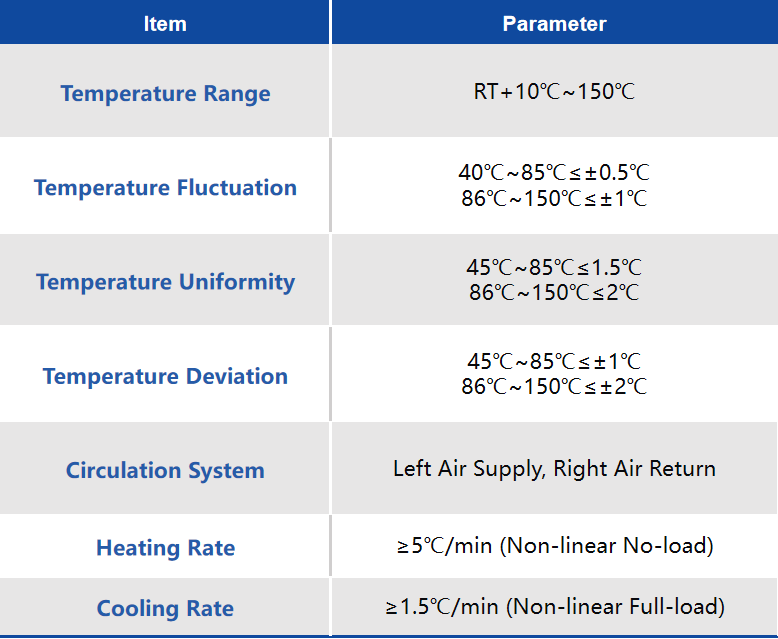

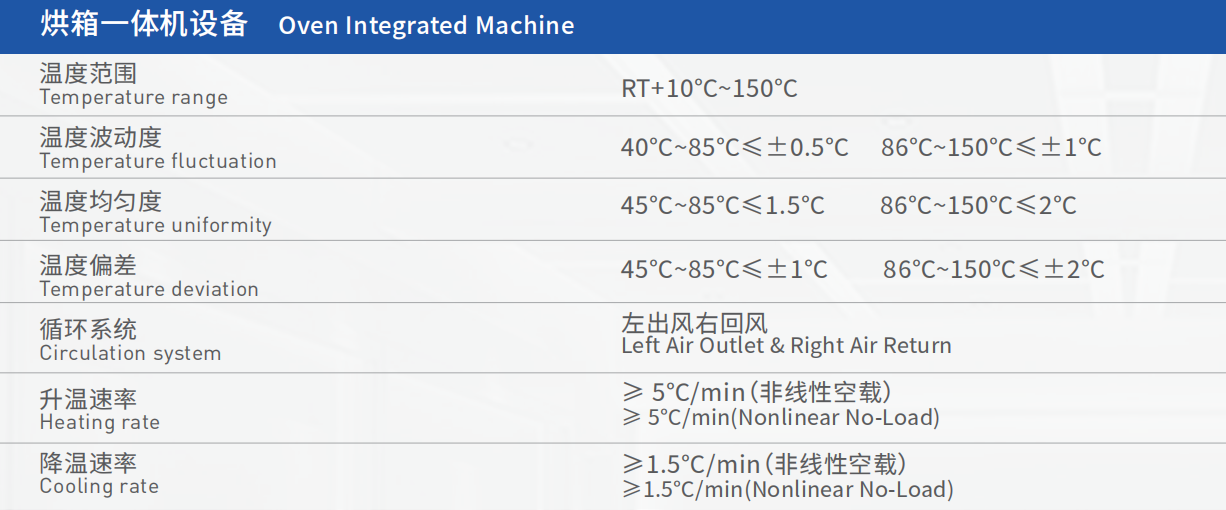

Performance index

Power supply: 380VAC 50/60Hz

Temperature range: RT+10 ° C~150 ° C

Temperature fluctuation: 40 ° C~85 ° C ≤ ± 0.5 ° C

                                         86 ° C~150 ° C ≤ ± 1 ° C

Temperature uniformity: 45°C~85°C≤1.5°C

                                        86°C~150°C≤2°C

Temperature deviation: 45 ° C~85 ° C ≤ ± 1 ° C

                                      86 ° C~150 ° C ≤ ± 2 ° C

Circulating system: left outlet air and right return air

Control mode: program control, constant value operation

Heating rate: ≥ 5 ° C/min (non-linear no-load)

Cooling rate: ≥ 1.5 ° C/min (non-linear no-load)

Protection functions: temperature over temperature alarm function, circulation motor overheating/overcurrent protection, explosion-proof chain protection

Specific functional parameters can be customized
