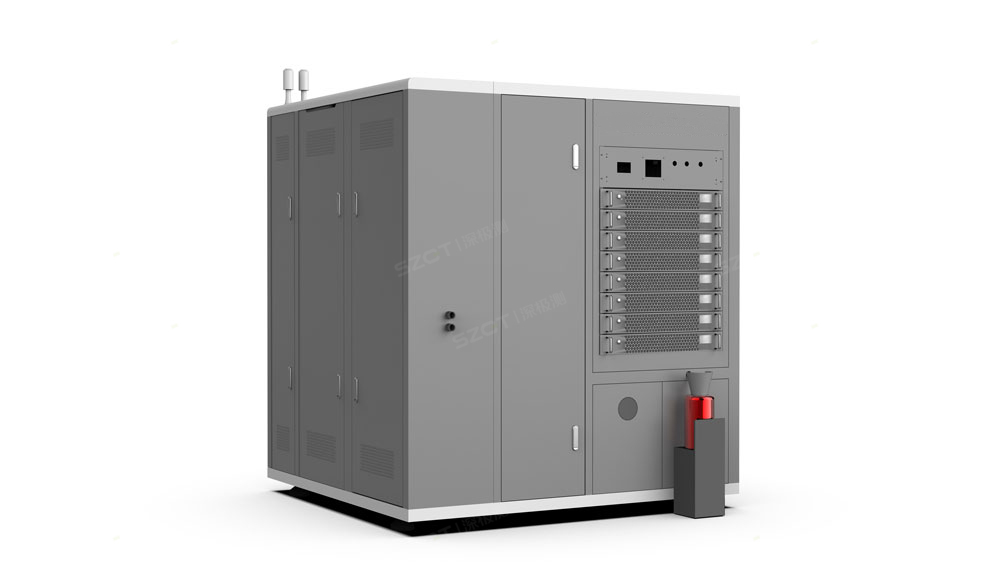

Battery Cell Testing System

Product Introduction

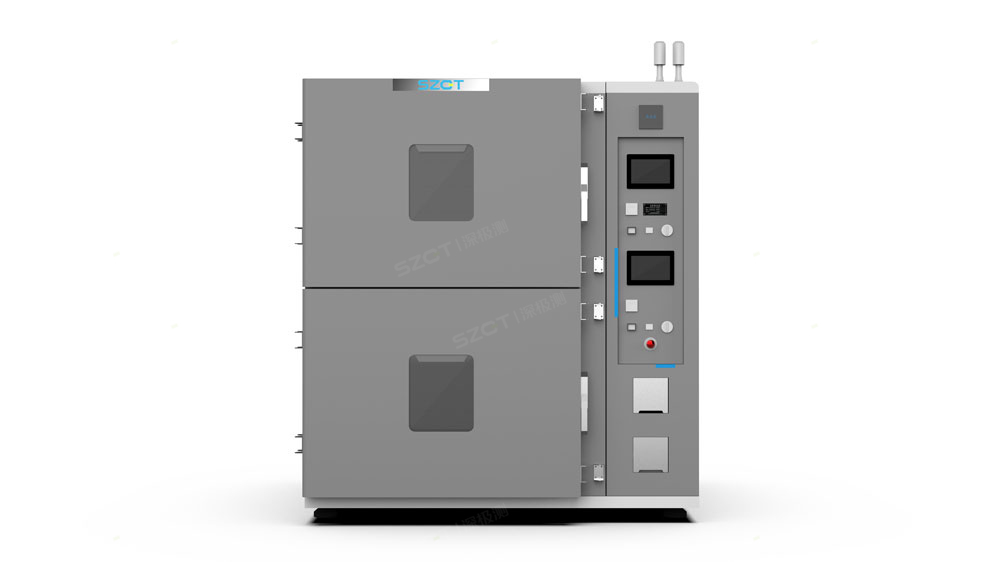

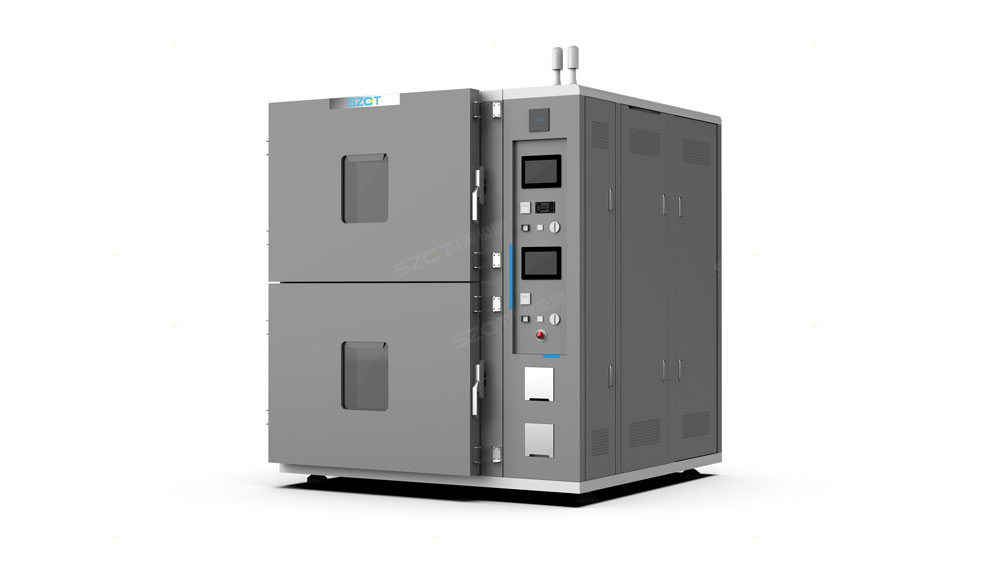

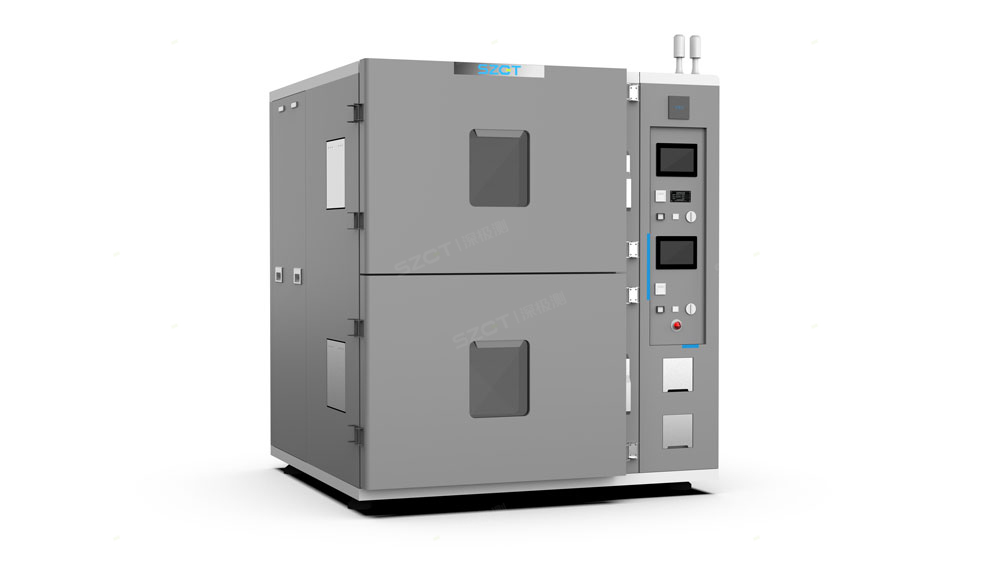

The high-low temperature chamber product is capable of simulating temperature variations in weather environments. When combined with a power module, it forms an integrated high-low temperature chamber system.

This system is primarily used for conducting high-low temperature tests or constant temperature tests on power battery cells. It evaluates product reliability by simulating temperature changes.

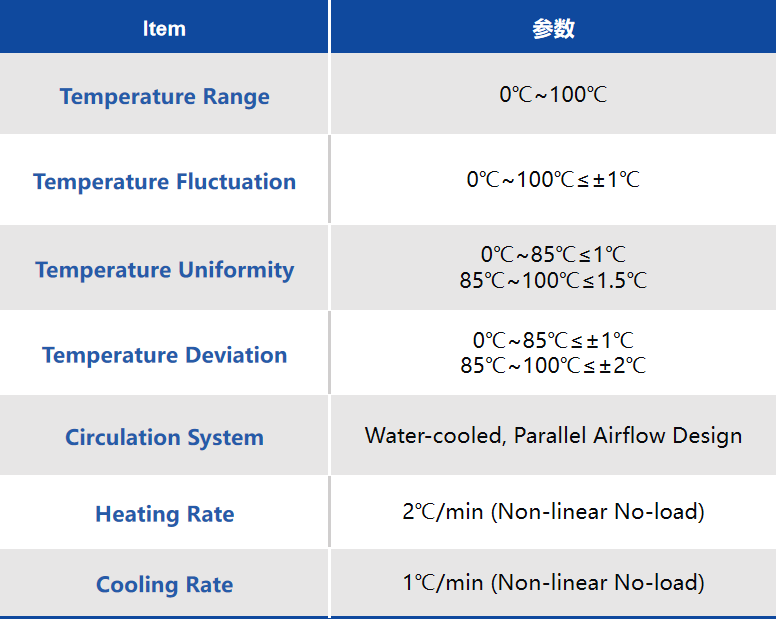

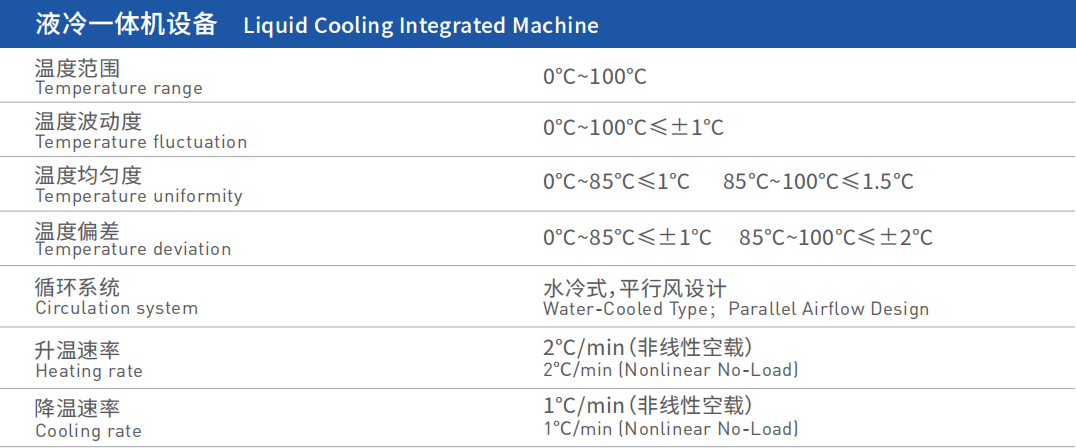

Performance index

Power supply: 380VAC 50/60Hz

Temperature range: 0 ° C~100 ° C

Temperature fluctuation: 0 ° C~100 ° C ≤ 1 ° C

Temperature uniformity: 0 ° C~85 ° C ≤ 1 ° C

                                        85°C~100°C≤1.5°C

Temperature deviation: 0 ° C~85 ° C ≤ ± 1 ° C

                                      85 ° C~100 ° C ≤ ± 2 ° C

Liquid cooled plate: equipped with thermocouple for real-time monitoring of water temperature

Flow meter range: 0.1-1.5L/min

Circulating system: water-cooled, parallel air design

Control mode: program control, constant value operation

Heating rate: 2 ° C/min (non-linear no-load)

Cooling rate: 1 ° C/min (non-linear no-load)

Protection functions: temperature over temperature alarm function, compressor pressure protection, circulation motor overheat/overcurrent protection, compressor overcurrent/overheat protection, explosion-proof chain protection

Specific functional parameters can be customized
